7.5 从项目文档浏览器 更新/创建 桁架图纸

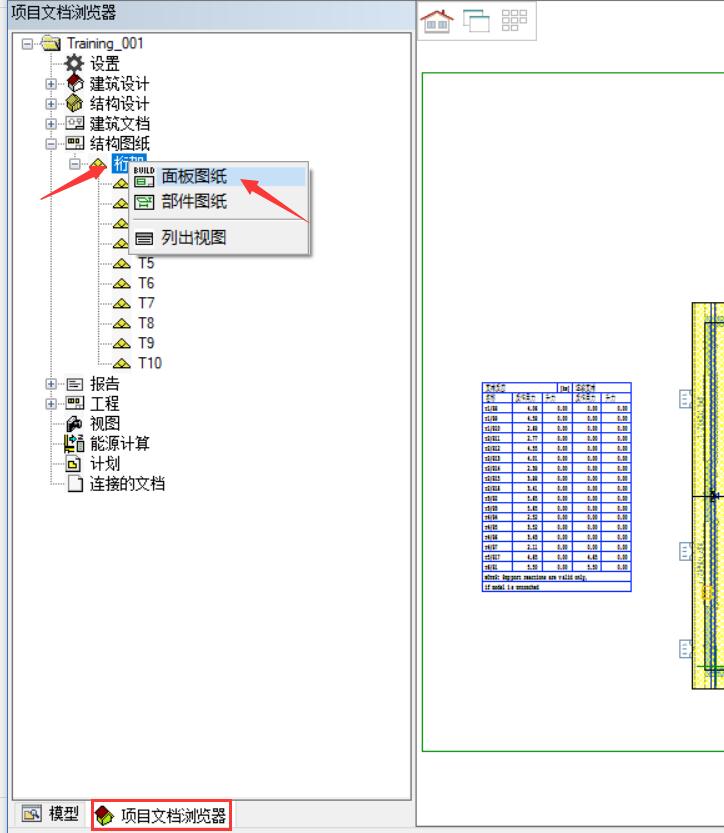

1. 点击软件窗口左边的项目文档浏览器→结构图纸→桁架→鼠标右键→下拉菜单选择面板图纸

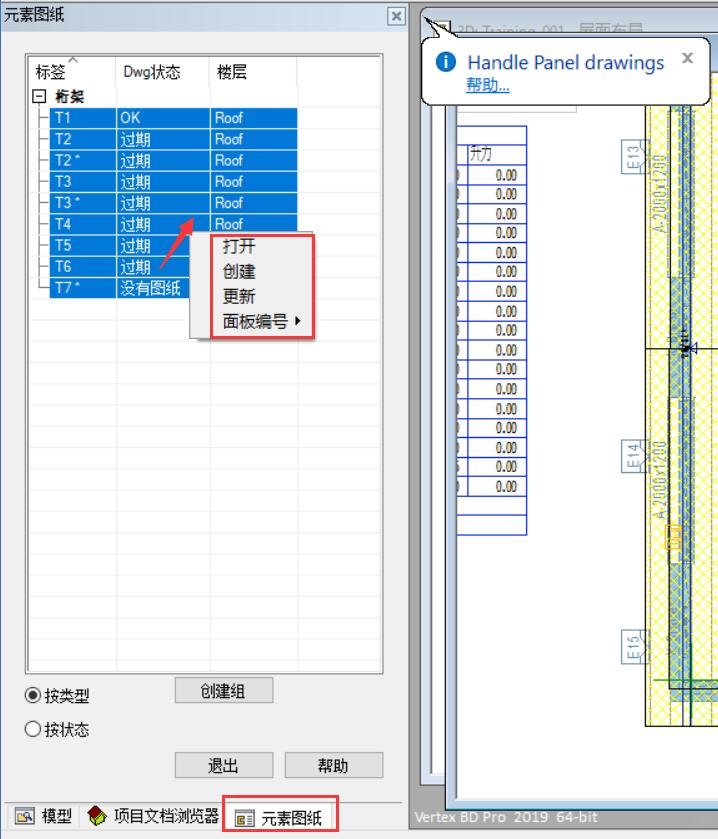

2. 元素图纸窗口弹出,选择想要更新或创建的桁架图纸→鼠标右键→下拉菜单选择更新或创建

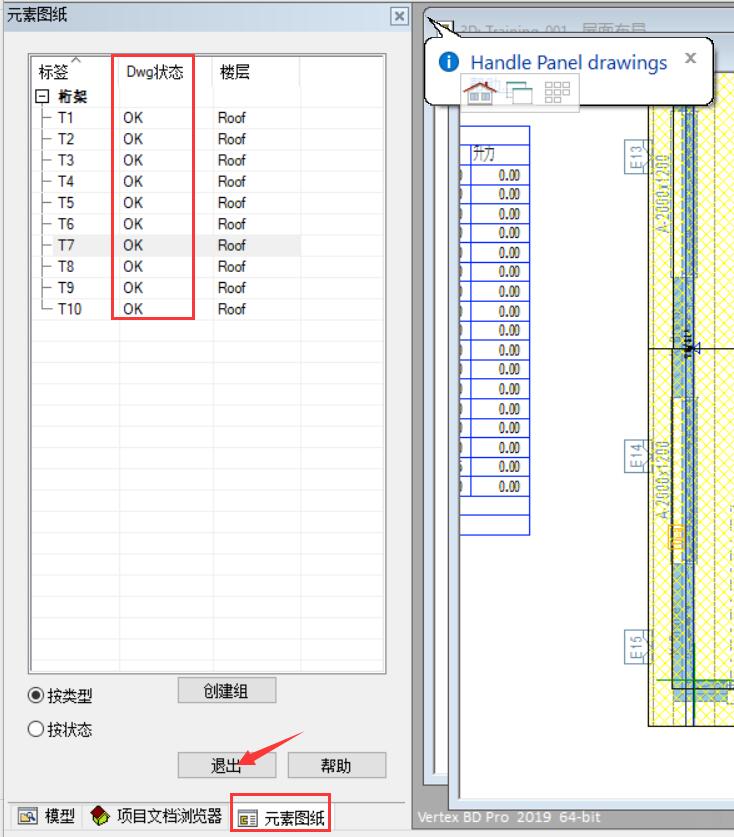

3. 桁架图纸状态显示OK,点击退出
