重钢设计

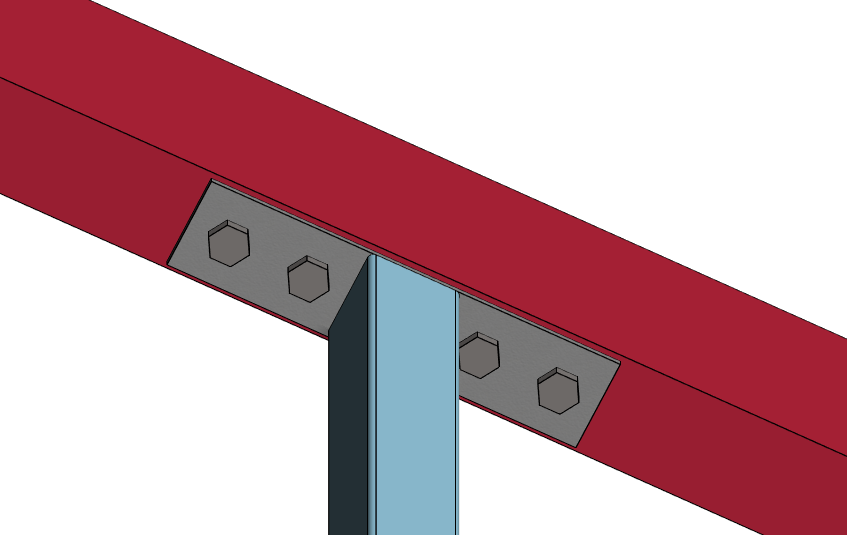

增加SHS与PFC连接
![image-20231128-122357.png](../__attachments/366903297/image-20231128-122357.png?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)

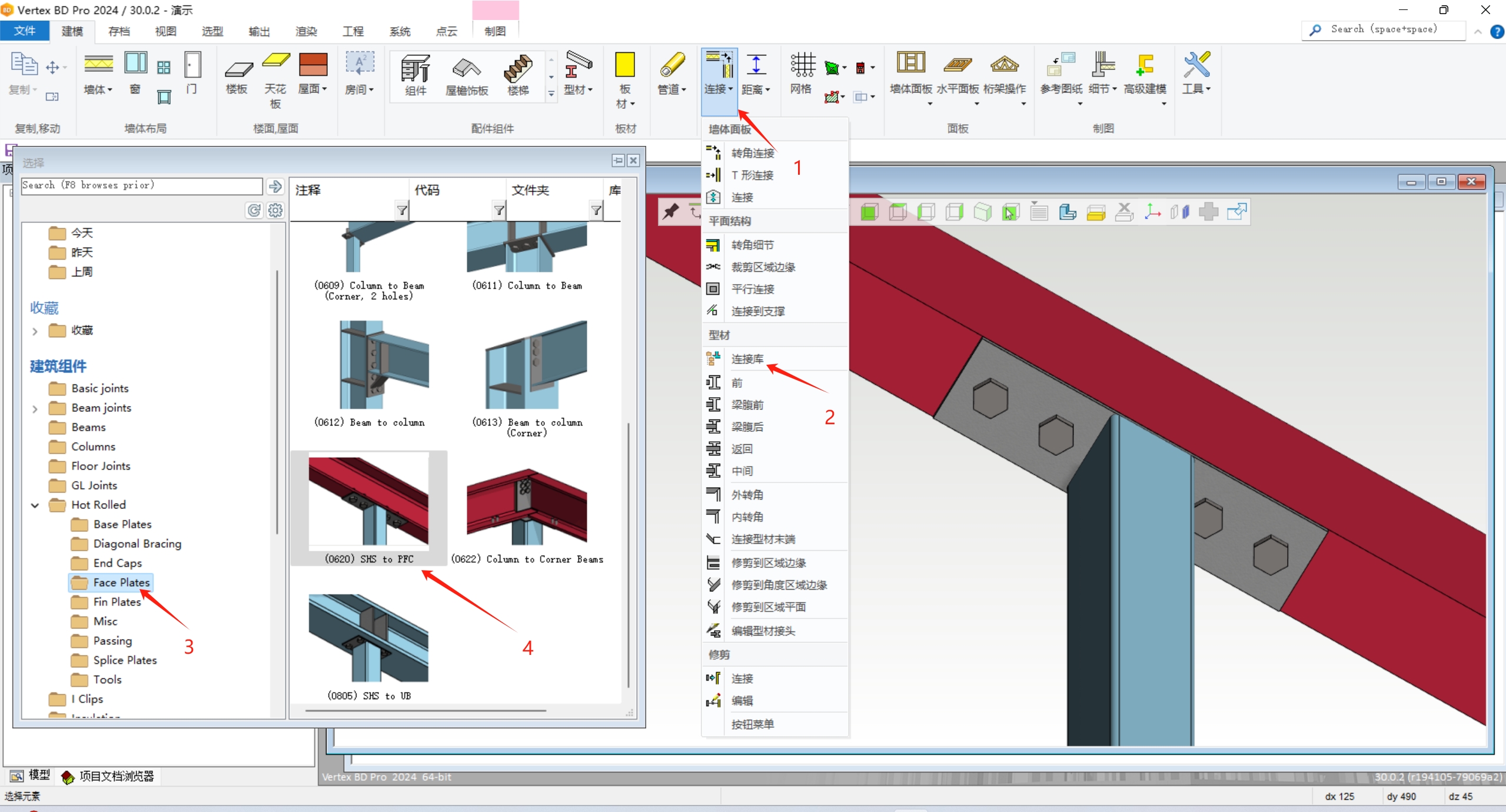

操作步骤:
![微信截图_20240322192147.png](../__attachments/366903297/%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20240322192147.png?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)

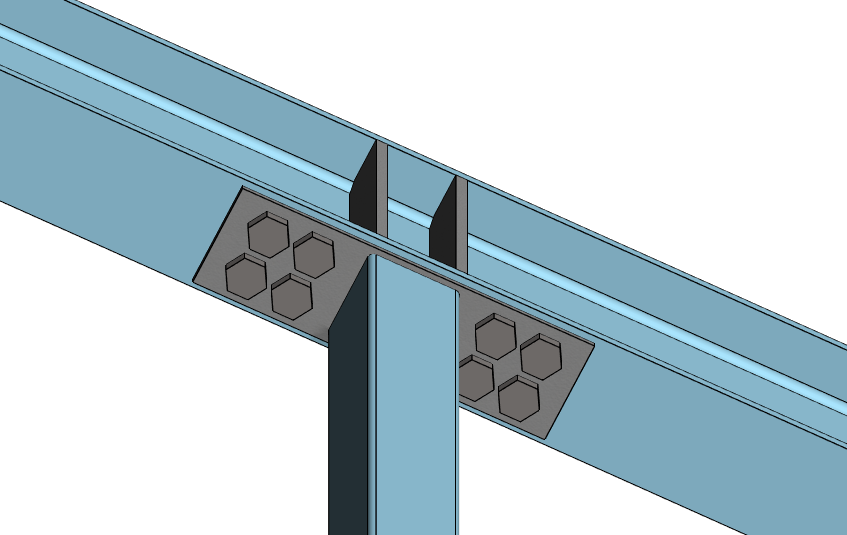

增加SHS与UB连接
![image-20231128-122141.png](../__attachments/366903297/image-20231128-122141.png?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)

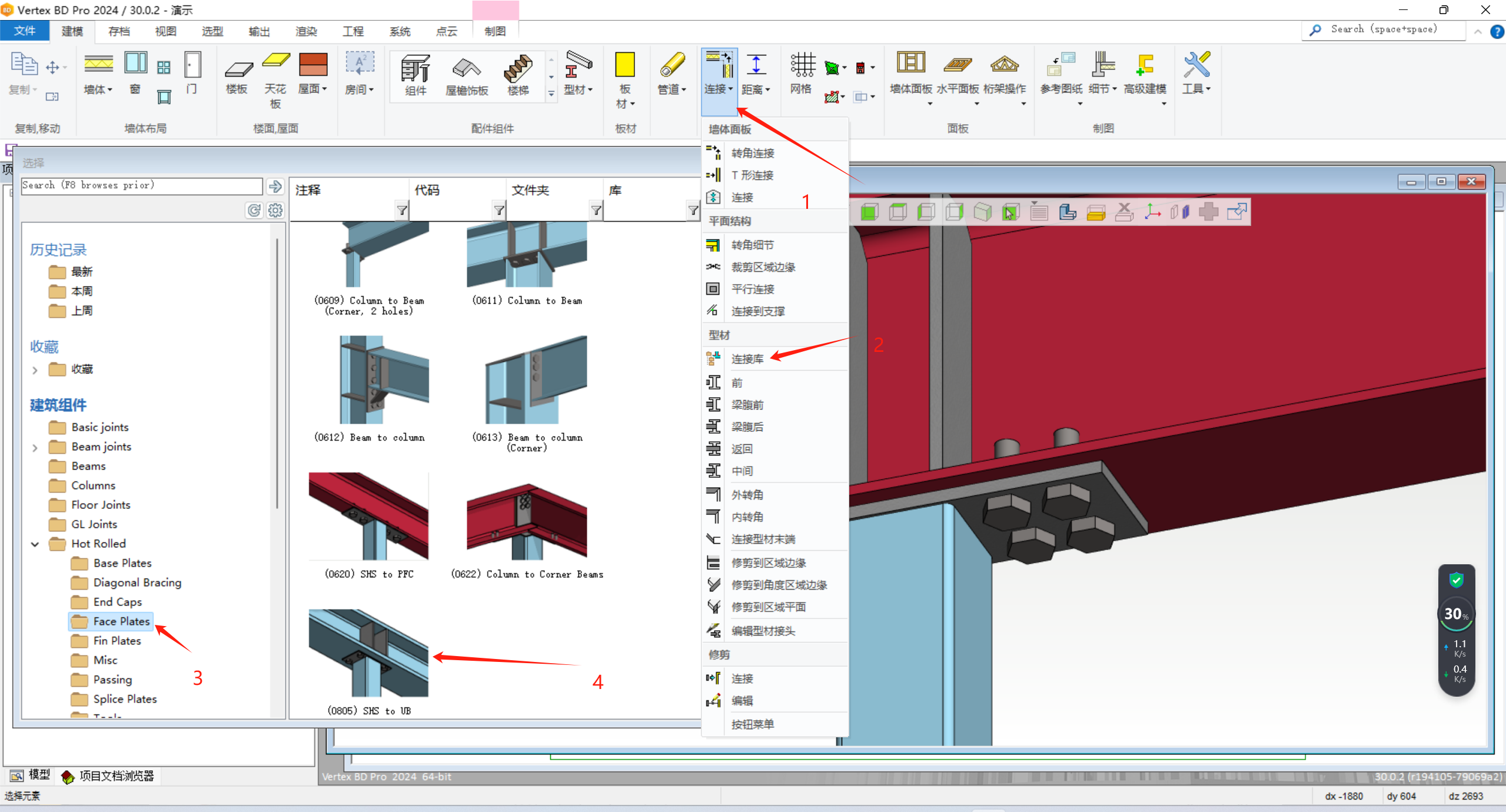

操作步骤:
![1711283333004.jpg](../__attachments/366903297/1711283333004.jpg?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)

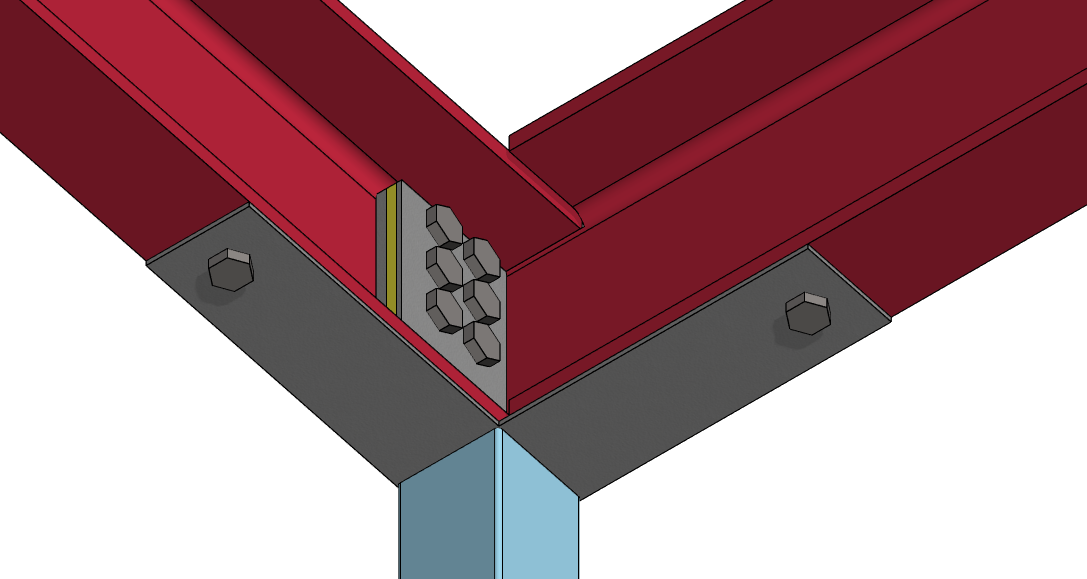

增加SHS柱与2个PFC的拐角连接
![image-20240104-163932.png](../__attachments/366903297/image-20240104-163932.png?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)
操作步骤:
首先在两根梁之间建立拐角连接,然后在柱和梁之间添加连接

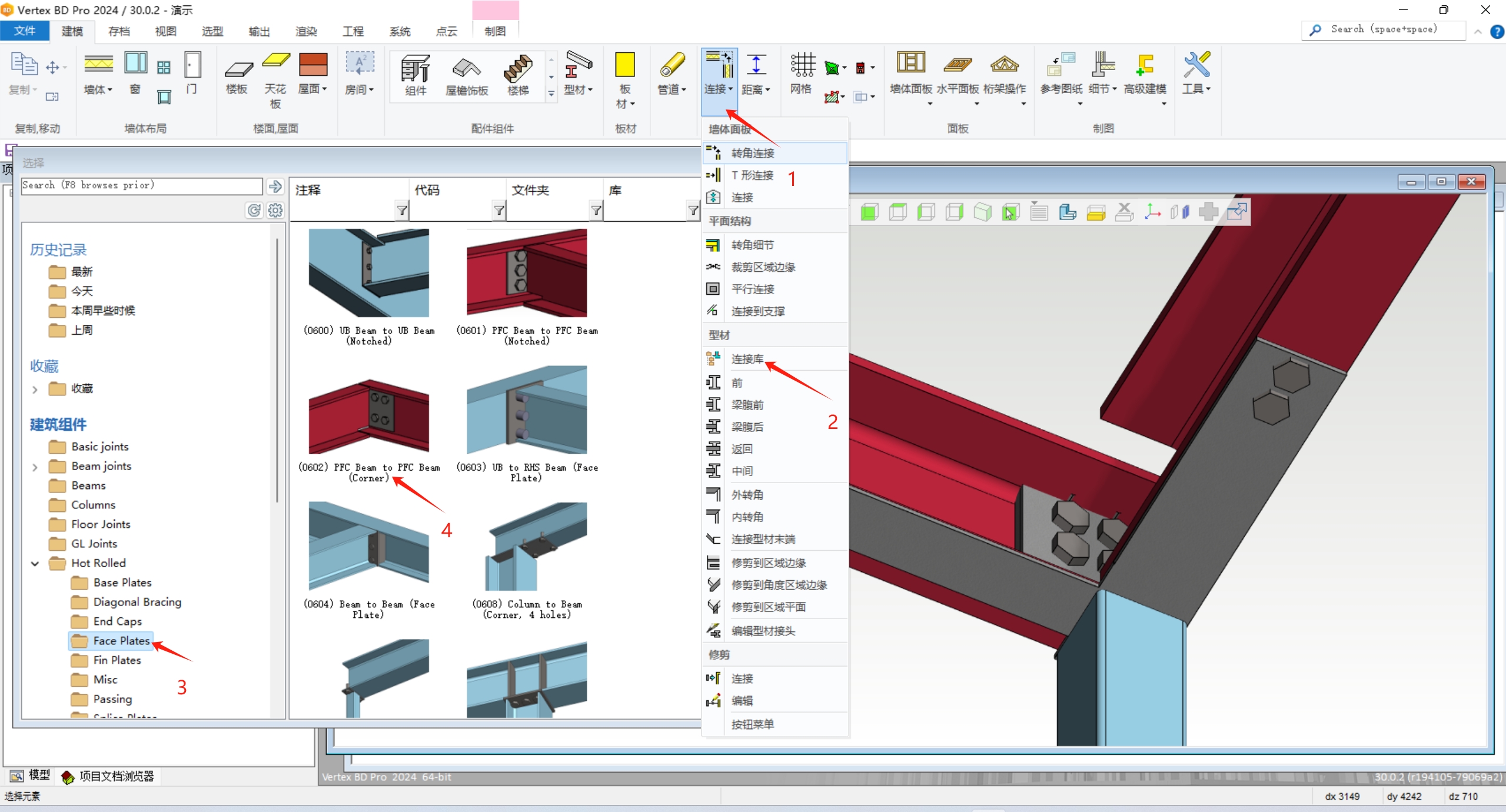

梁与梁连接
![微信截图_20240324203737.png](../__attachments/366903297/%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20240324203737.png?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)

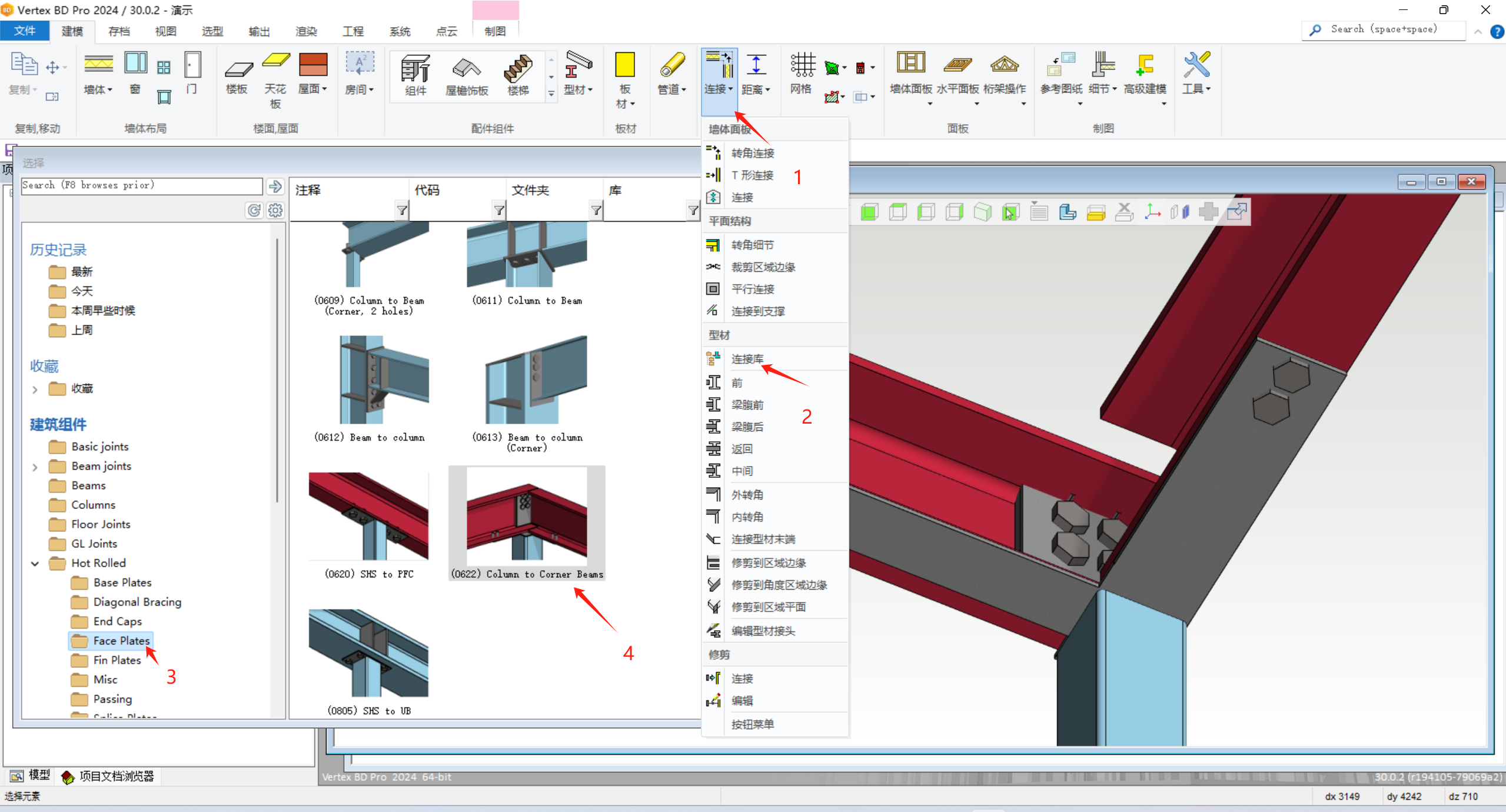

柱与梁连接
![1711283887035.jpg](../__attachments/366903297/1711283887035.jpg?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)
新增基板的螺栓偏移功能
![微信图片_20240321105547.jpg](../__attachments/366903297/%E5%BE%AE%E4%BF%A1%E5%9B%BE%E7%89%87_20240321105547.jpg?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)

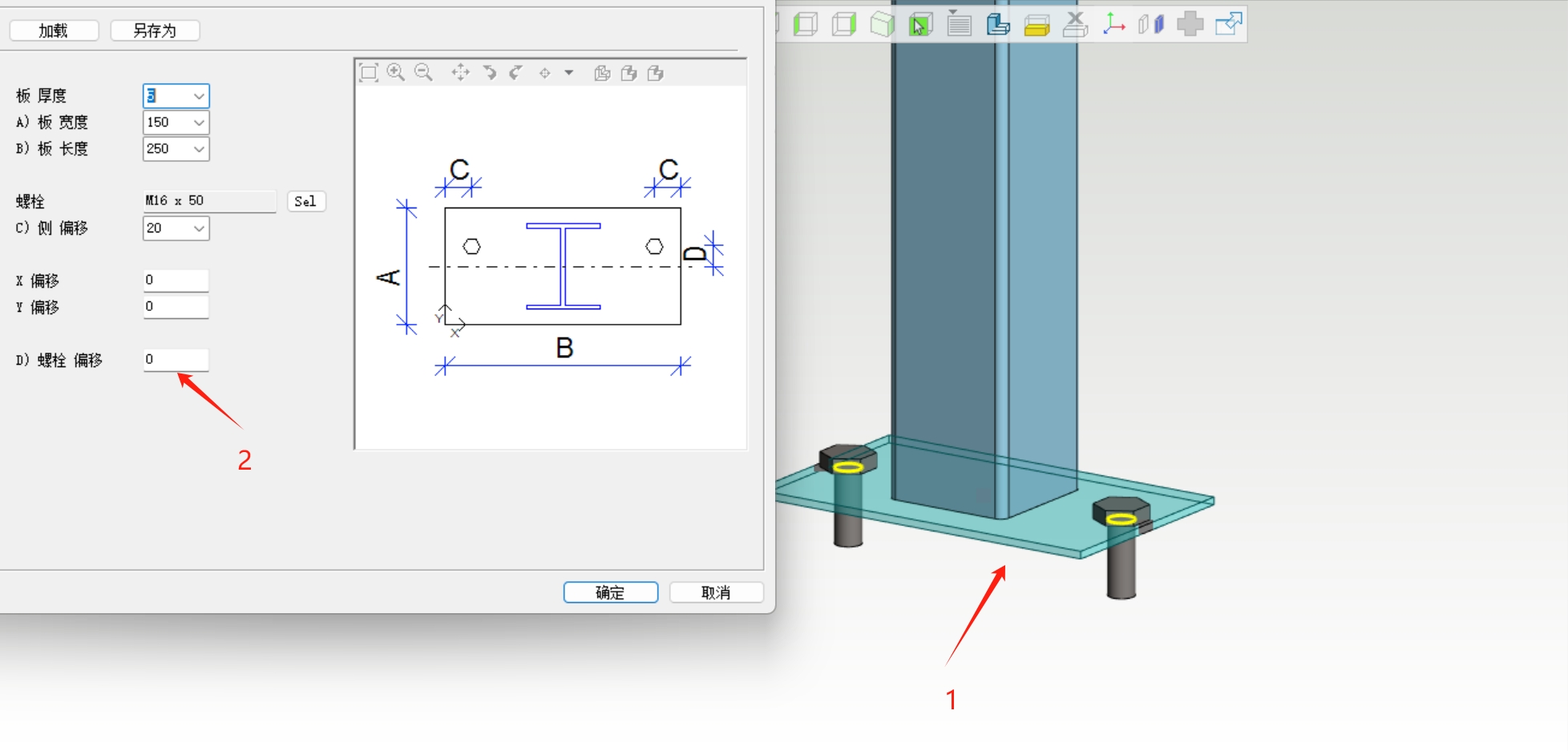

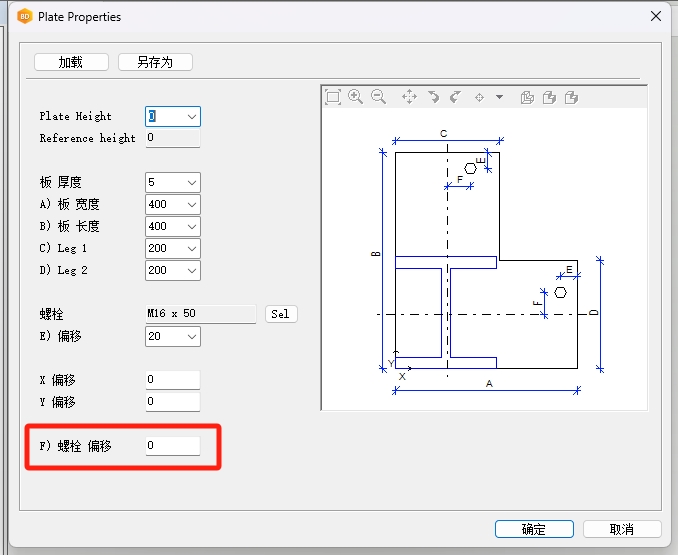

对于带有1、2或L形板孔的底板,螺栓现在可以从板中心偏移。
![微信截图_20240324203930.png](../__attachments/366903297/%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20240324203930.png?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)
PFC与PFC的连接支持栓焊连接并可以将螺栓数据保存到库
![image-20240103-111510.png](../__attachments/366903297/image-20240103-111510.png?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)

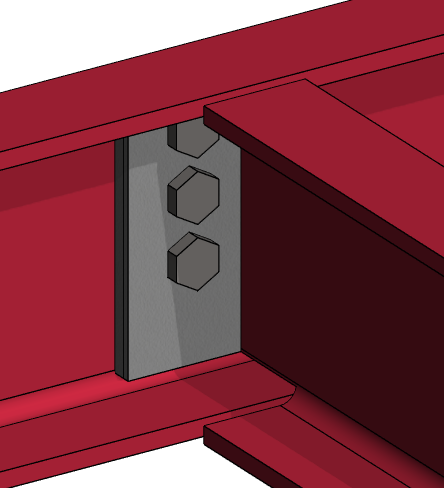

型材PFC到型材PFC的连接与面板梁到面板梁的连接统一起来,默认为“连接到腹板”。还可以将连接数据保存到库,以便相同结构使用。

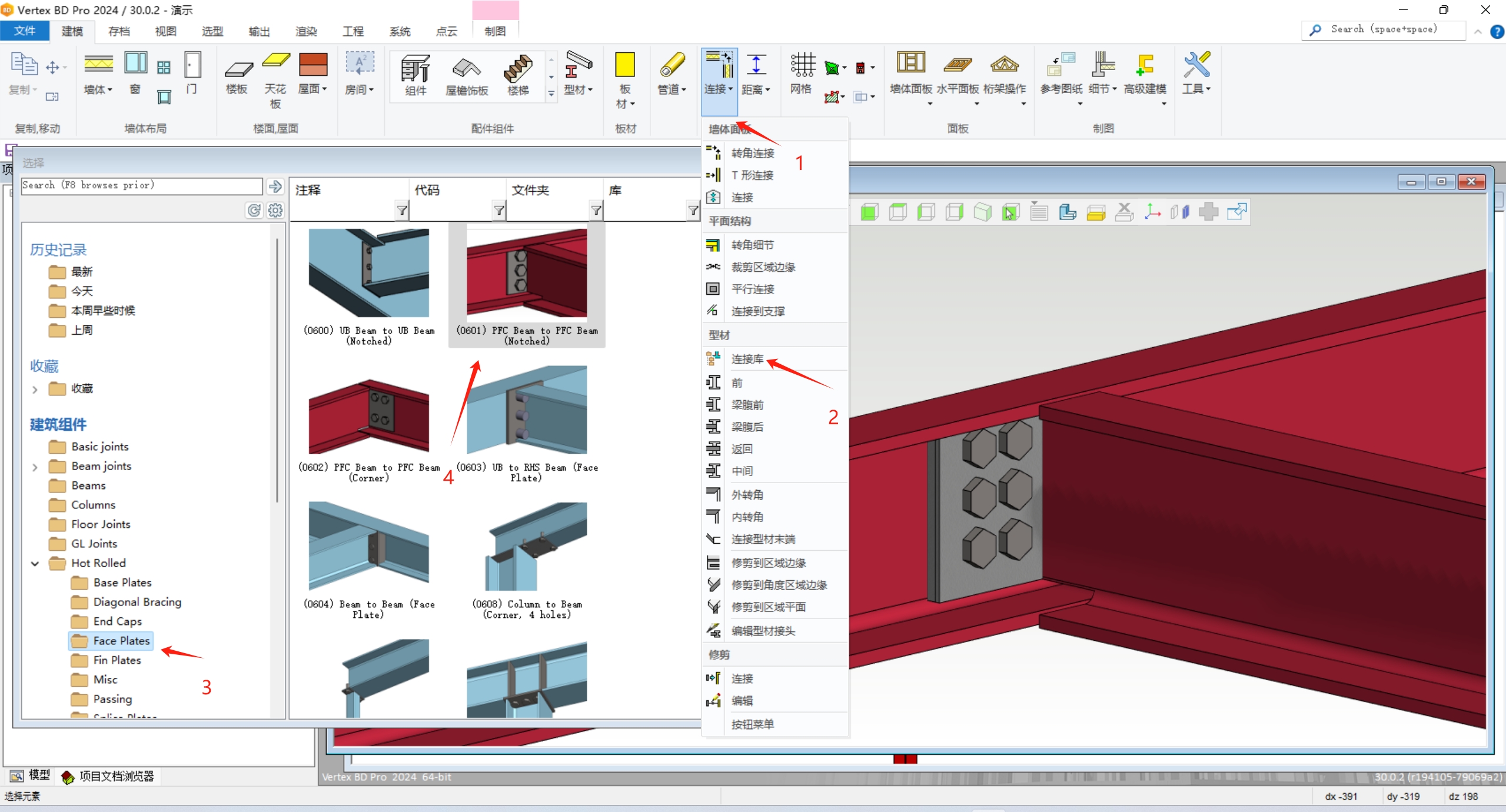

操作步骤
![微信截图_20240324204113.png](../__attachments/366903297/%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20240324204113.png?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)

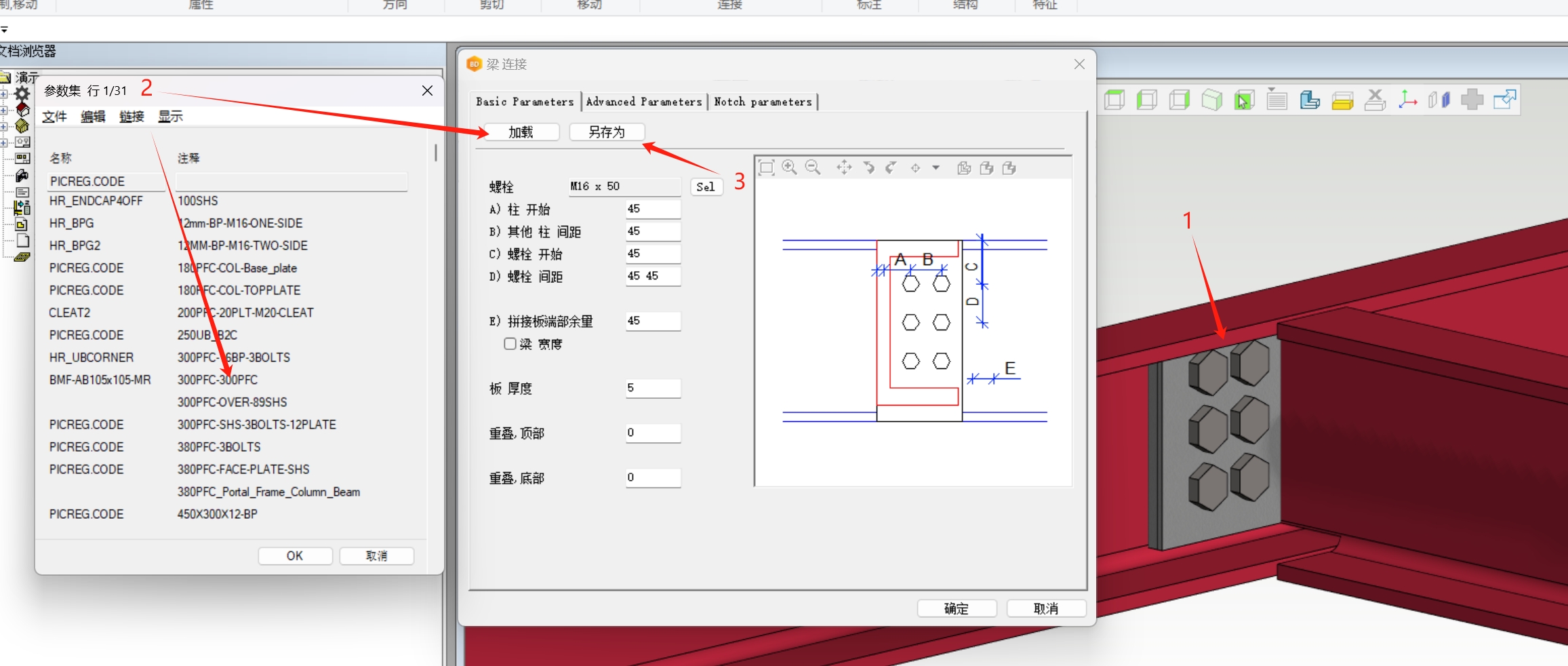

保存与加载库
![微信截图_20240324204238.png](../__attachments/366903297/%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20240324204238.png?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)

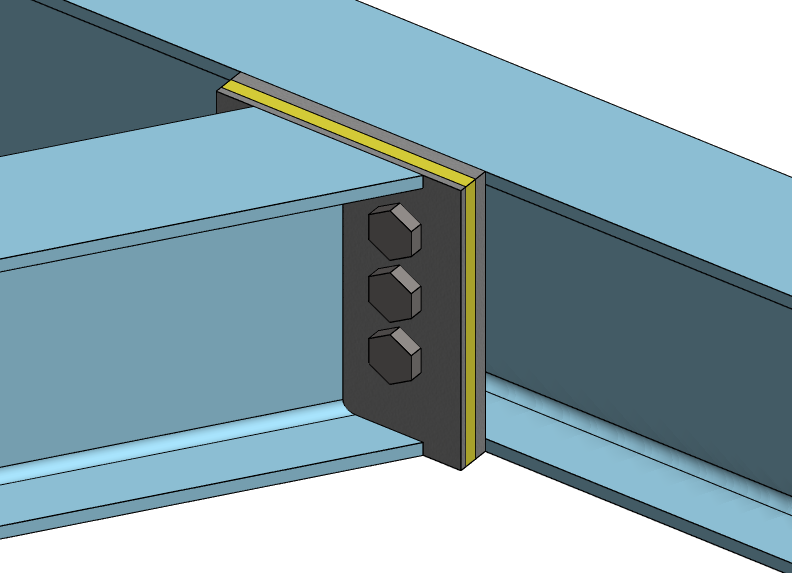

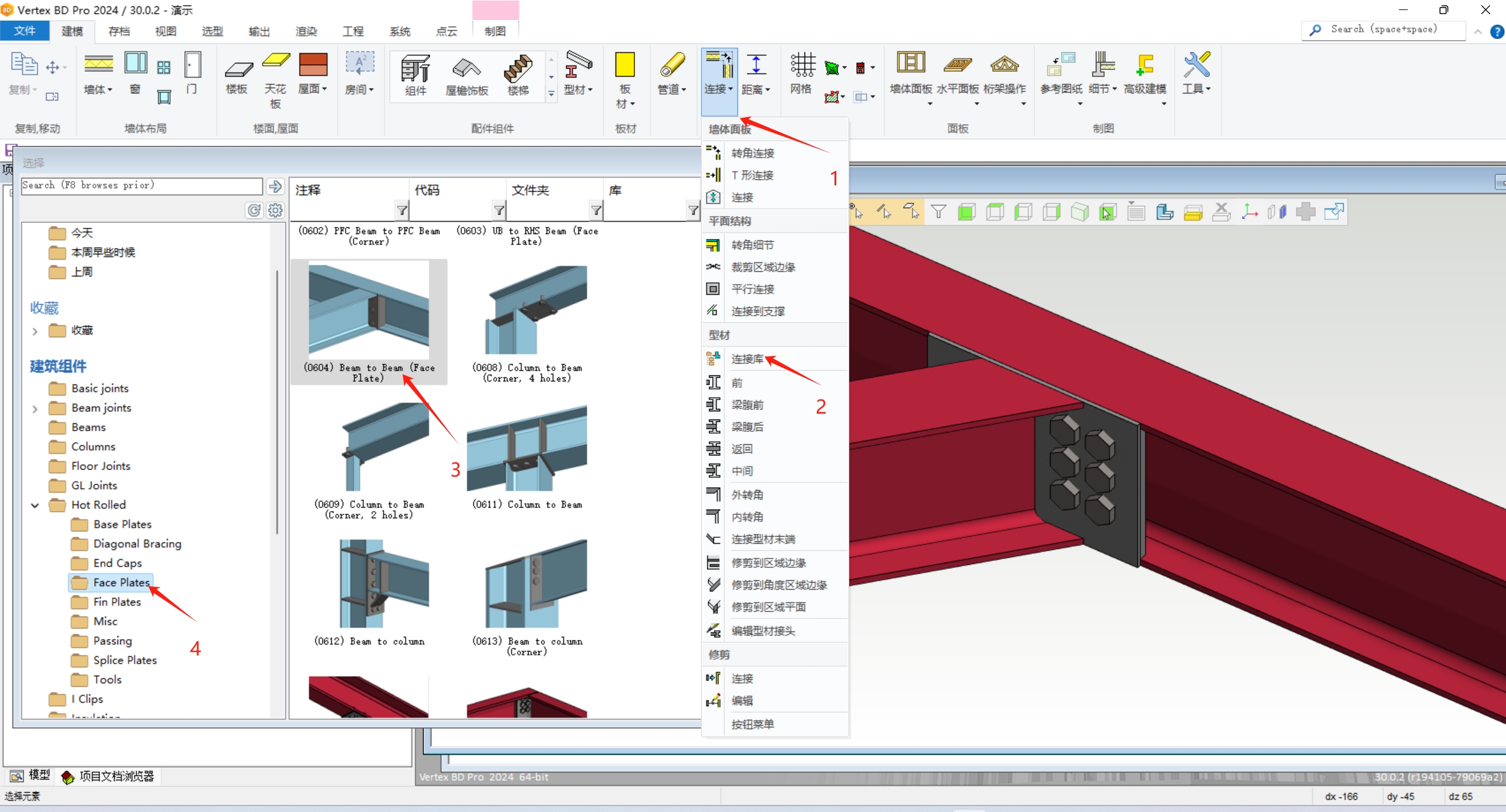

钢梁与钢梁现在可以斜角度连接固定
![image-20231128-125155.png](../__attachments/366903297/image-20231128-125155.png?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)
![微信截图_20240324204454.png](../__attachments/366903297/%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20240324204454.png?inst-v=030ec42a-4264-4e3a-939c-1ff674320f31)
