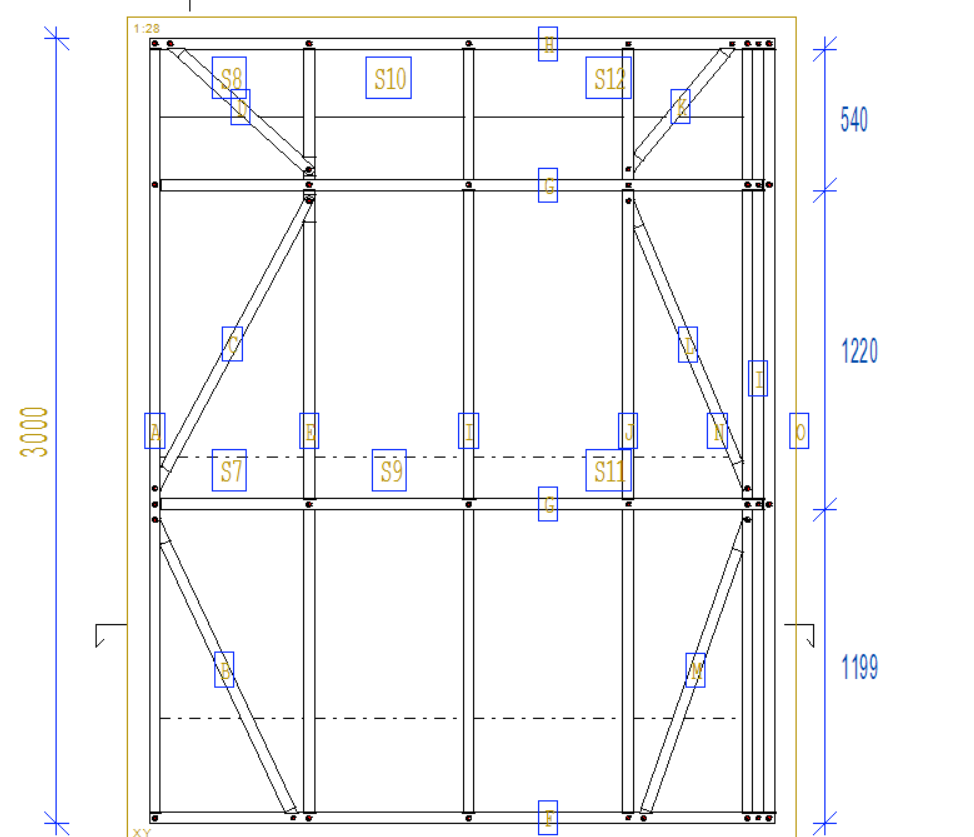

1.如图所示杆件编号为字母。

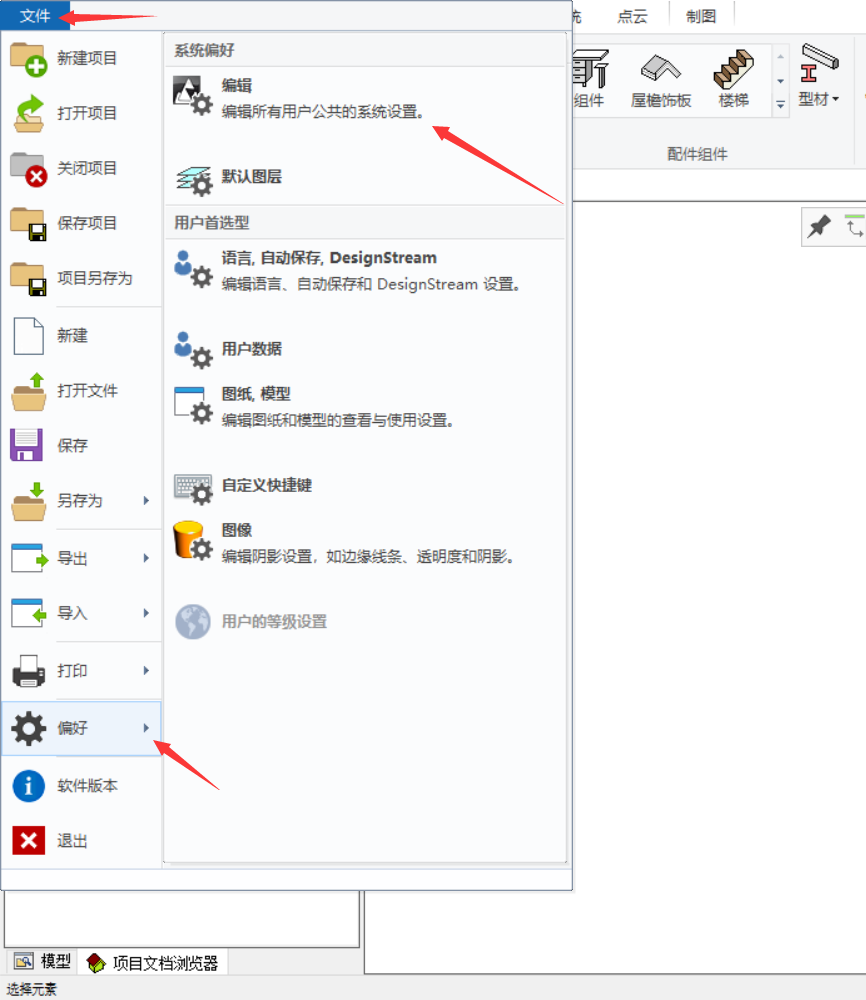

2.文件→偏好→编辑。

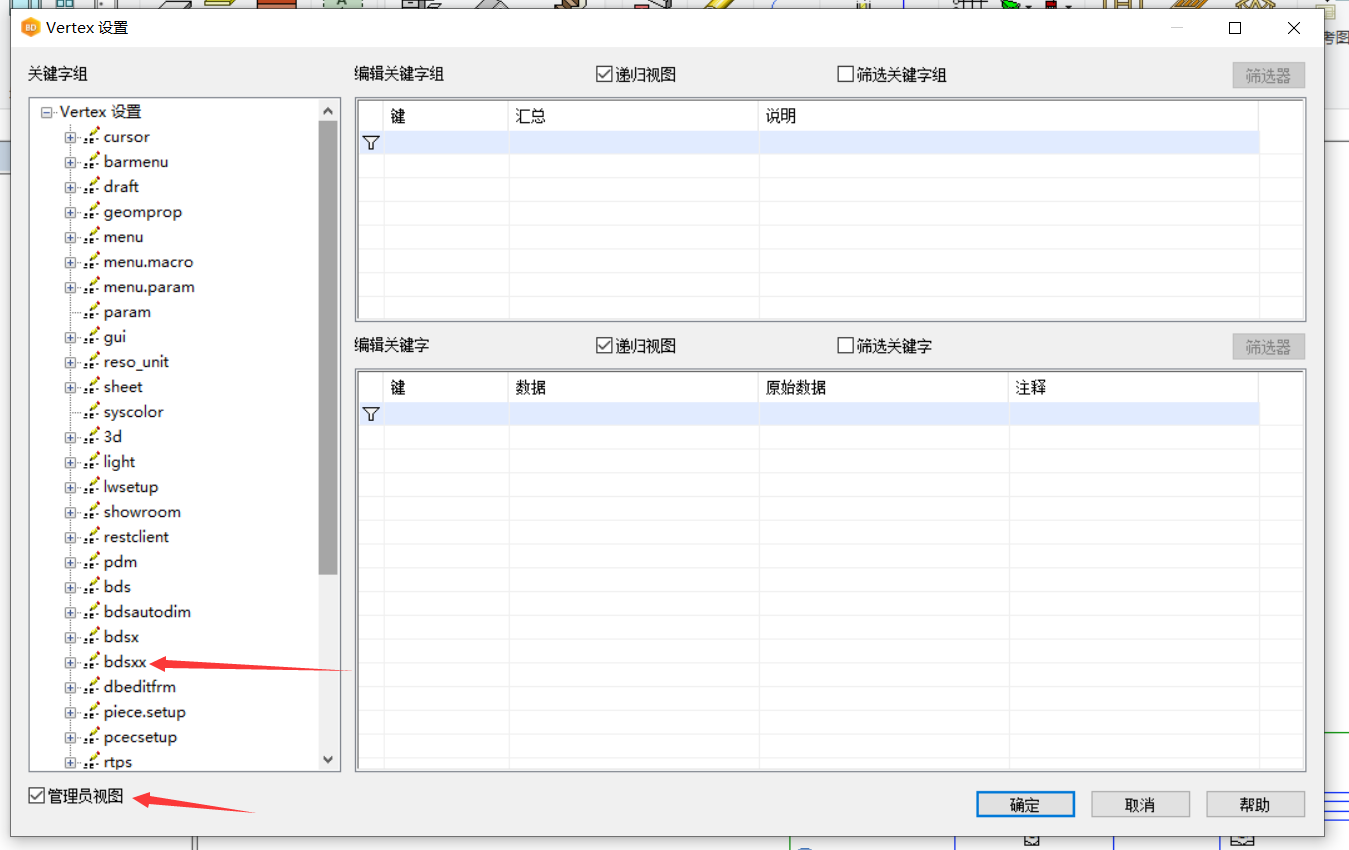

3.勾选管理员视图,并找到bdsxx。

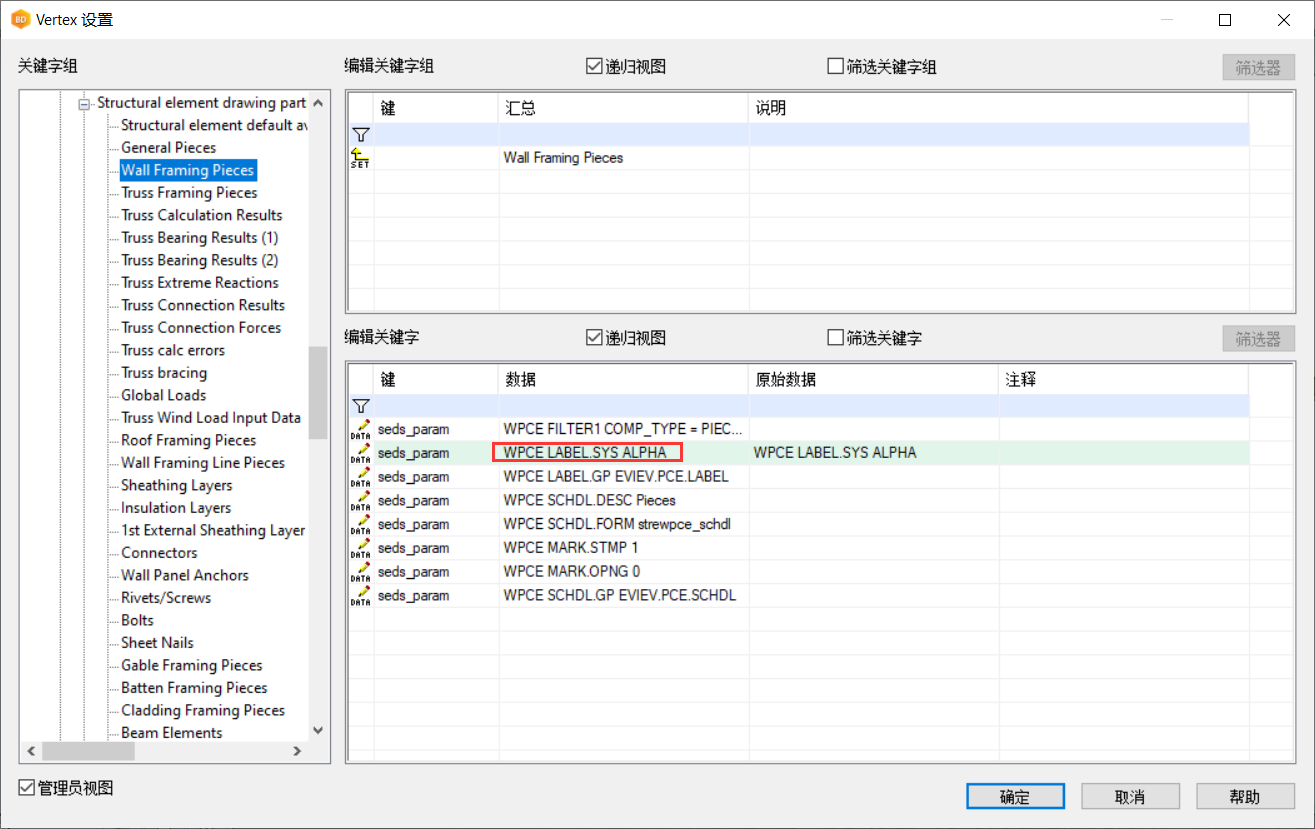

4.展开bdsxx,找到Structural element drawing partlists并展开,这里以Wall Framing pieces(墙体龙骨杆件)示例。

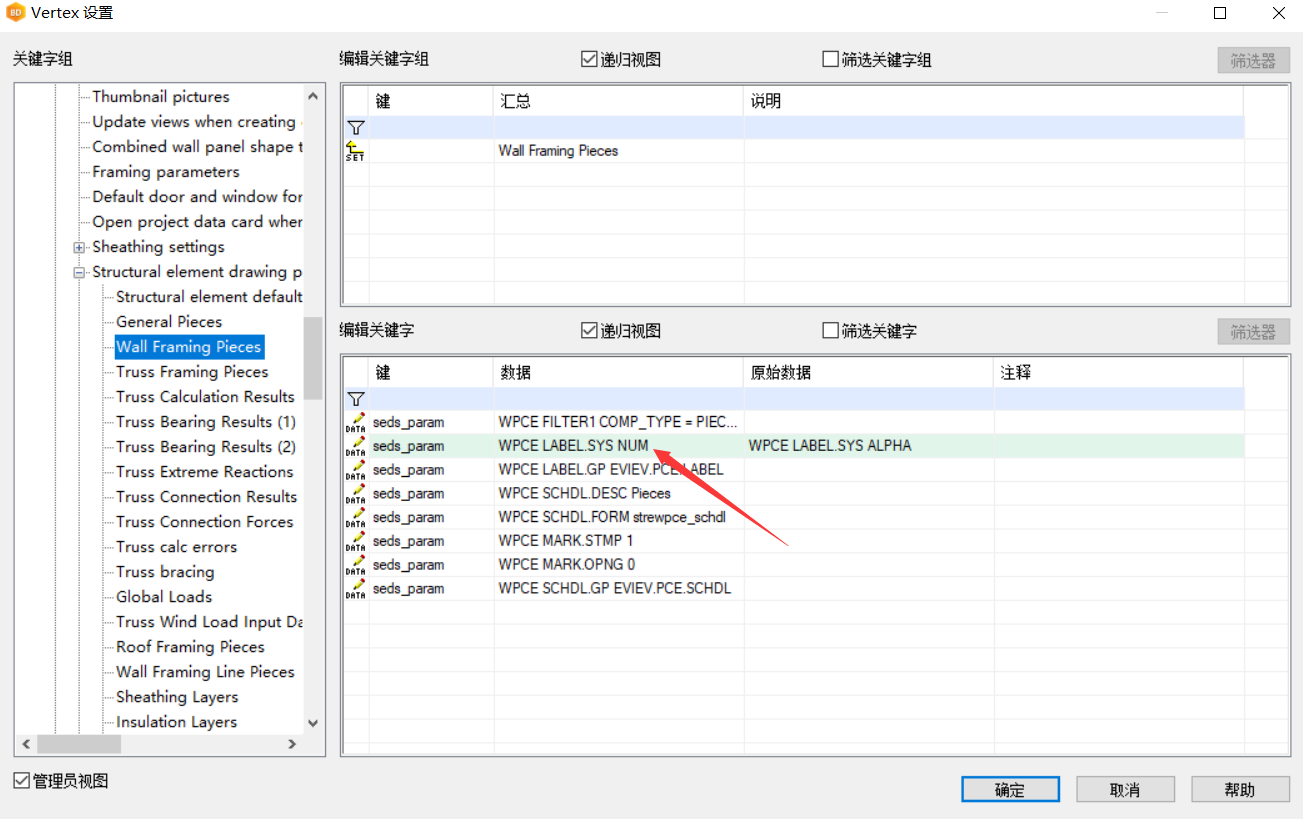

5.点击Wall Framing pieces,将ALPHA改为NUM,如图,点击确定。

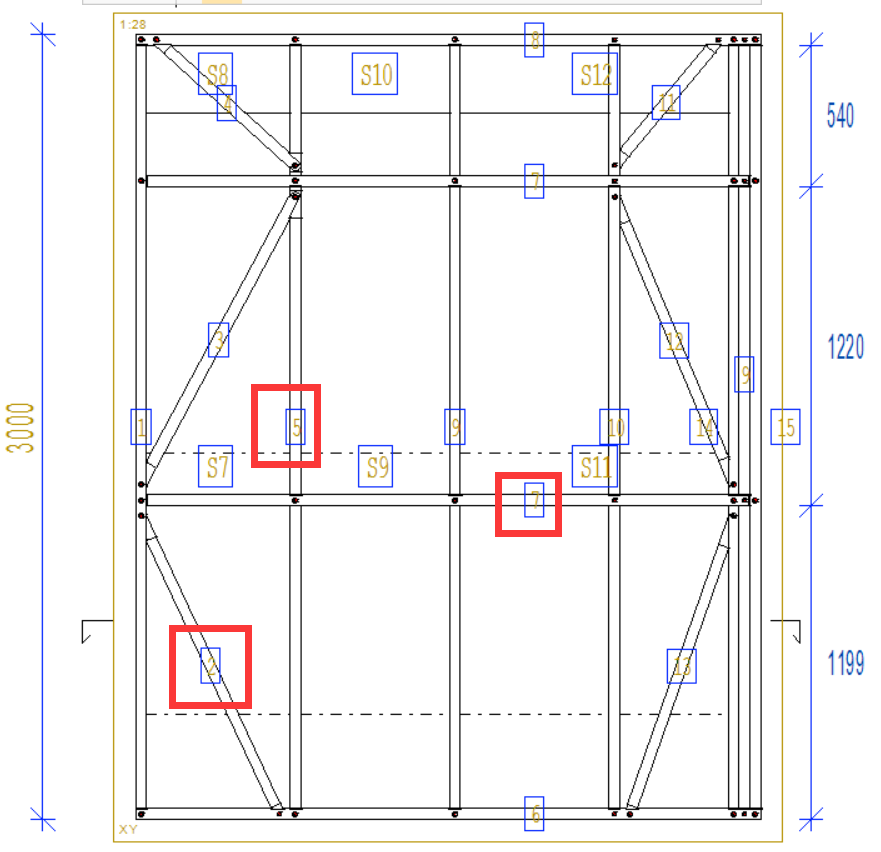

6.重启软件,之前已经创建了图纸的面板需要删除,重新生成面板,生成部件,创建图纸。如下图所示,所有杆件编号都变成了数字。

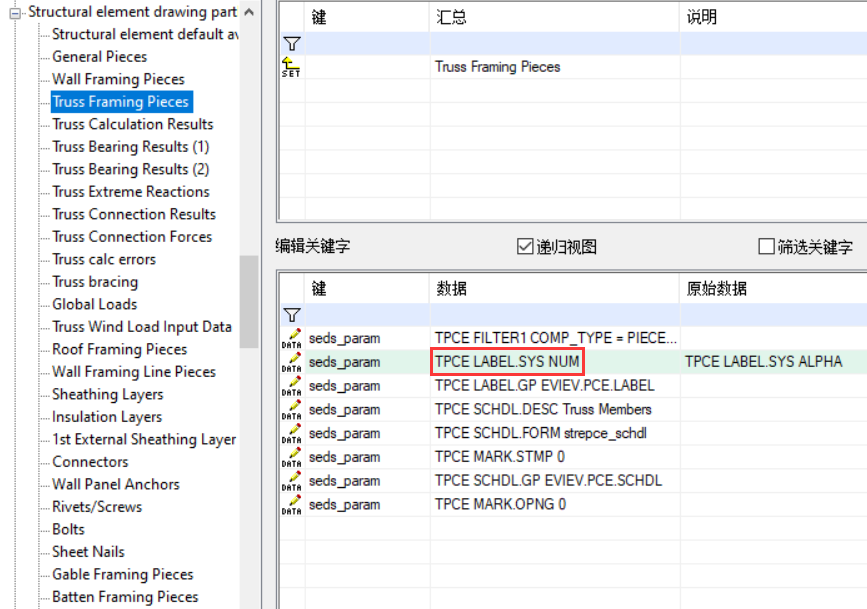

7. 把杆件的字母编号改为数字编号:桁架面板。

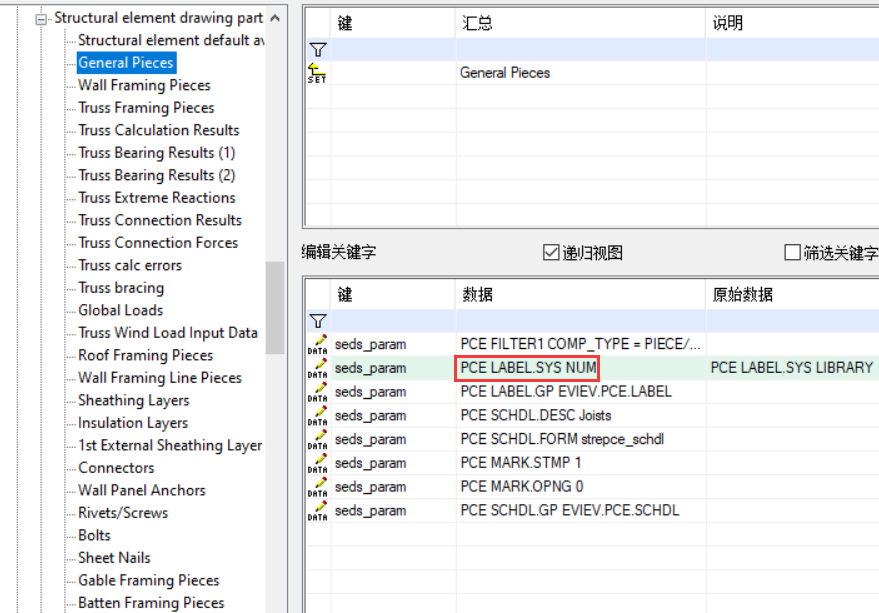

8. 把杆件的字母编号改为数字编号:屋盖面板与楼板地板面板。
